Dual Bead Tire Building Machine
Modal： p002

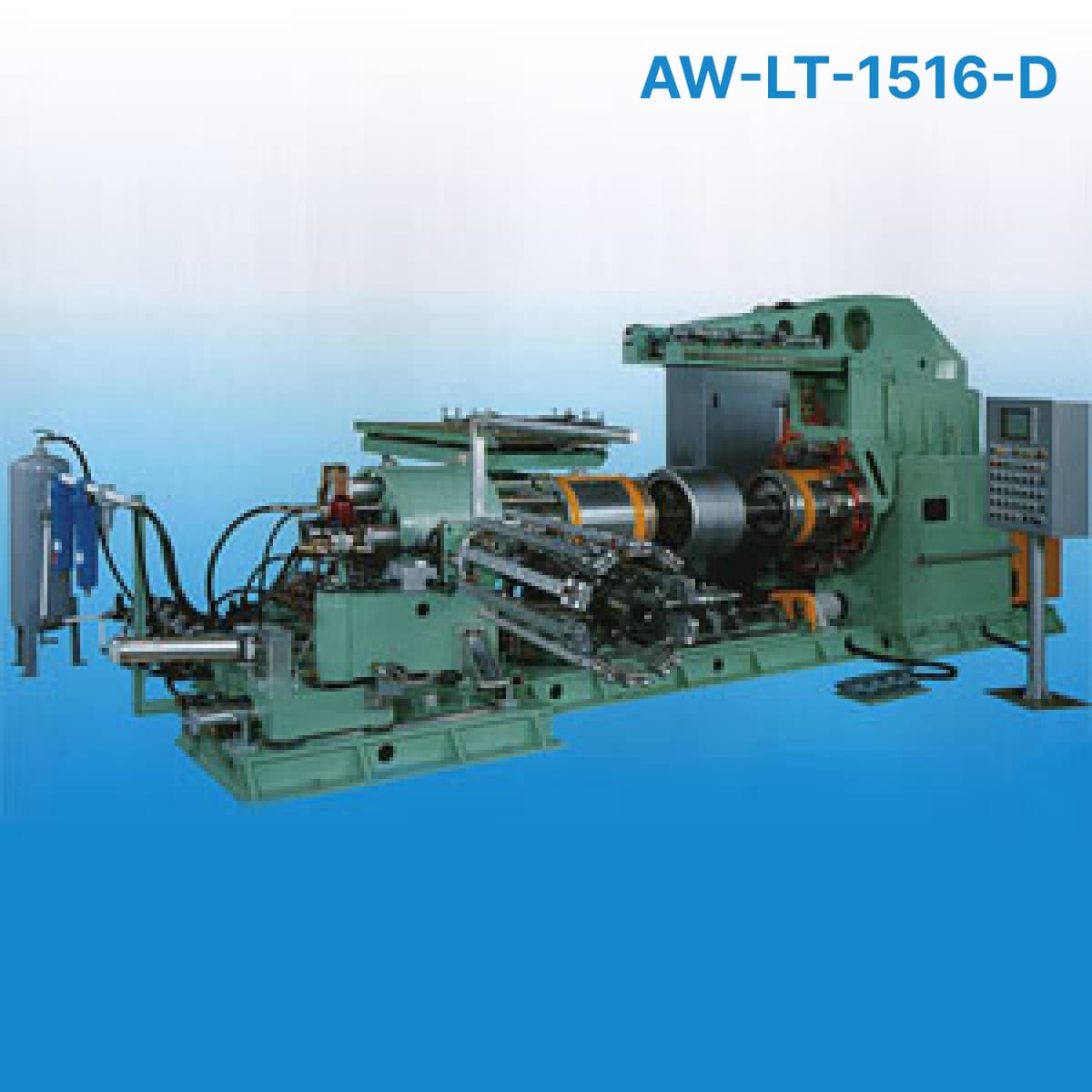

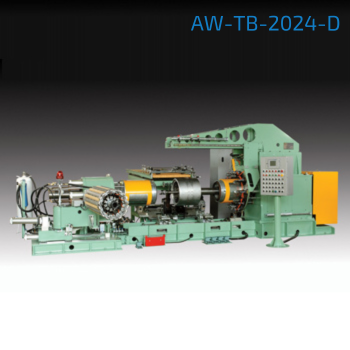

| Model | AW-LT-1516-D | AW-TB-2024-D |
|---|---|---|
| Drum Construction | Expand/ collapse type | |
| Applicable Tire | Light Truck Tire | Truck & Bus Tire |
| Control System | PLC Control/ Auto/ Manual | |
| Drum Diameter | Ø400 - Ø550mm | 20" - 24" |
| Suitable Building Drum Width | 350mm - 650mm | 390 - 720mm |
| Width Of Band | Max. 970mm | Max. 1100mm |
| Main Shaft Motor | 7.5HP* 6P | 10HP* 6P |
| Drum Revolution | 175/ 110/ 40 Rpm | 150/ 100/ 35 Rpm |
| Band Applicator Motor | 2HP * 4P | 2HP |
| Air Pressure | 7 Kg/c㎡ | 7 Kg/c㎡ |
- Dual bead & band building type.
- Bladder turn up & wheel turn down.
- Automatic expand/ collapse building drum.
- Strong type ply down finger/ bead auto setting.
- Expand/ collapse type band applicator.
- Pulling device with clipper easy to apply band to building drum.
