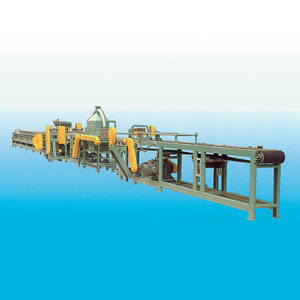

Automatic Tube Extruding Line
Modal： p080
Sing Tube Both For Bent & Straight, Type
Twin Straight Valve
Single Straight Valve
| Model | Tube Extruder | ||||
|---|---|---|---|---|---|
| 1. Water cooling conveyor. | 1. Color line device | ||||
| 2. Water blow-Off device. | 2. Size marking device | ||||
| 3. Auto hot-knife pre-set precision length cutting device. | The price of optional attachment should be negotiated separately | ||||
| 4. Automatic valve hole punching device. | |||||
| 5. Automatic valve fitting device. | |||||
| 6. Soap stoning Outside of tube. | |||||
| 7. Take up conveyor | |||||
| 8. Lot of piping and electric accessories. | |||||
| 9. Motor | 5HP x 1, 3HP x 2, 1/4HP x 1 | ||||
| 10. Conveyor speed | Max. 30M./min. adjustable | ||||
| 11. Air Pressure | 6~7 kg/c㎡ | ||||
| Model \ Specifications | Min.Tube Length | Con. Width | Tube Extruding Number | Tube Valve Type | Suitable Tube Size |
| AW-CR-108-350-1S | 750mm | 300mm | single line | straight type | B/C M/C S/C |
| AW-CR-1-08-350-1BS | 750mm | 300mm | single line | both straight & bent valve | B/C M/C S/C |
| AW-CR-1-08-350-2S | 750mm | 300mm | twin line | straight type | B/C M/C |
| AW-CR-1-04-350-1BS | 350mm | 300mm | single line | both bent & straight type | I/D4"~6" |
| AW-CR-1-08-500-1BS | 750mm | 500mm | single line | both bent & straight type | T/B L/T P/C |
