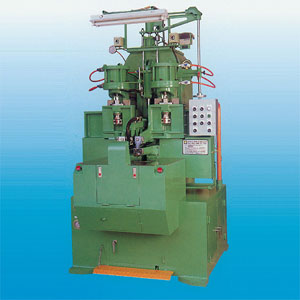

Inner Tube Splicer
Modal： p081
| Type | AW-1-220 | AW-9-180 | AW-3-300 | Aw-4-540 |
|---|---|---|---|---|
| Tube Feed Size (Width of Tube) |
450-14 (130mm) 440-14 (110mm) 26x1-3/8 (38mm) |
450-12 (130mm) 400- 4 (110mm) |
900-16 (205mm) 400- 7 (110mm) |
1400-24 (350mm) 700-16 (190mm) |
| Minimum Inner Circumferential of Tube |
900mm | 320mm | 480mm | 1400mm |
| Vehicle Types | Bicycles, Motorcycles | Bicycles, Motorcycles Industrial | Passenger, Light truck, Motorcycle, Scooter | Bus/ Truck |
| Knife Length | 220mm | 180mm | 300mm | 540mm |
| Splicing Force of Vise (Theoretical Force) |
400kg (600kg) | 1000 (1200kg) | 1900-2900kg | 400kg (5700kg) |
| Dia. of Vise Cylinder | 125Ø | 160Ø | 250Ø | 270Ø |
| Power Source | Air Pressure 7kg/c㎡ | Air Pressure 7kg/c㎡ | Air Pressure 8kg/c㎡ | Air Pressure 10kg/c㎡ |
| Time Per Cycle | 8-20 Sec. | 8-30 Sec. | 12-25 Sec. | 20-30 Sec. |
| Remarks | Possible Max. Tube Size 560-13 (150mm) | Possible Max. Tube Size 1800-25 (490-500mm) | ||
| Note: Data contained in this listing are subjected to change without notice. | ||||
