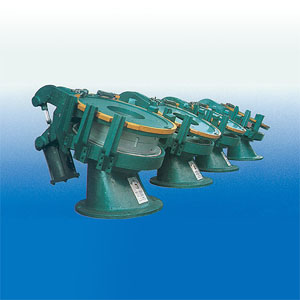

Tube Curing Press
Modal： p082
AW-TBP-1
Tube Curing Press (Tube Vulcanizer)
AW-TBP-2/3/4/5
| Spec.\Model | AW-TBP-1 | AW-TBP-2 | AW-TBP-3 | AW-TBP-4A | AW-TBP-4B | AW-TBP-5 |
|---|---|---|---|---|---|---|
| Tube Size | Truck & Bus 8.25-20 ~ 1.000-22 |
Light Truck 6.00-12 ~ 8.25-16 |
L/T & P/C 5.00-10 ~ 6.50-16 |
Bicycle 20"~28" Motorcycle 16"~21" |
Bicycle 12-1/2" ~ 28" M/C I/C 4"~21" |
Bicycle 12-1/2" ~ 20" Industrial S/C 4"~10" |
| Mold O.D. | Ø1220mm | Ø855mm | Ø760mm | Ø760mm | Ø760mm | Ø586mm |
| Mold I.D. | Ø380mm | Ø255mm | Ø220mm | Ø340mm | Ø100mm | Ø132mm |
| Mold Thickness | 320mm | 255mm | 200MM | 170MM | 170MM | 170MM |
| Steam Pressure | 10kg/c㎡ | |||||
| Air Pressure | 7kg/c㎡ | |||||
| For steam jacket heating mold. | ||||||
With patent special designed for saving the consumption of steam.
Use with silicone o-ring which will be capable for long terms operation.
